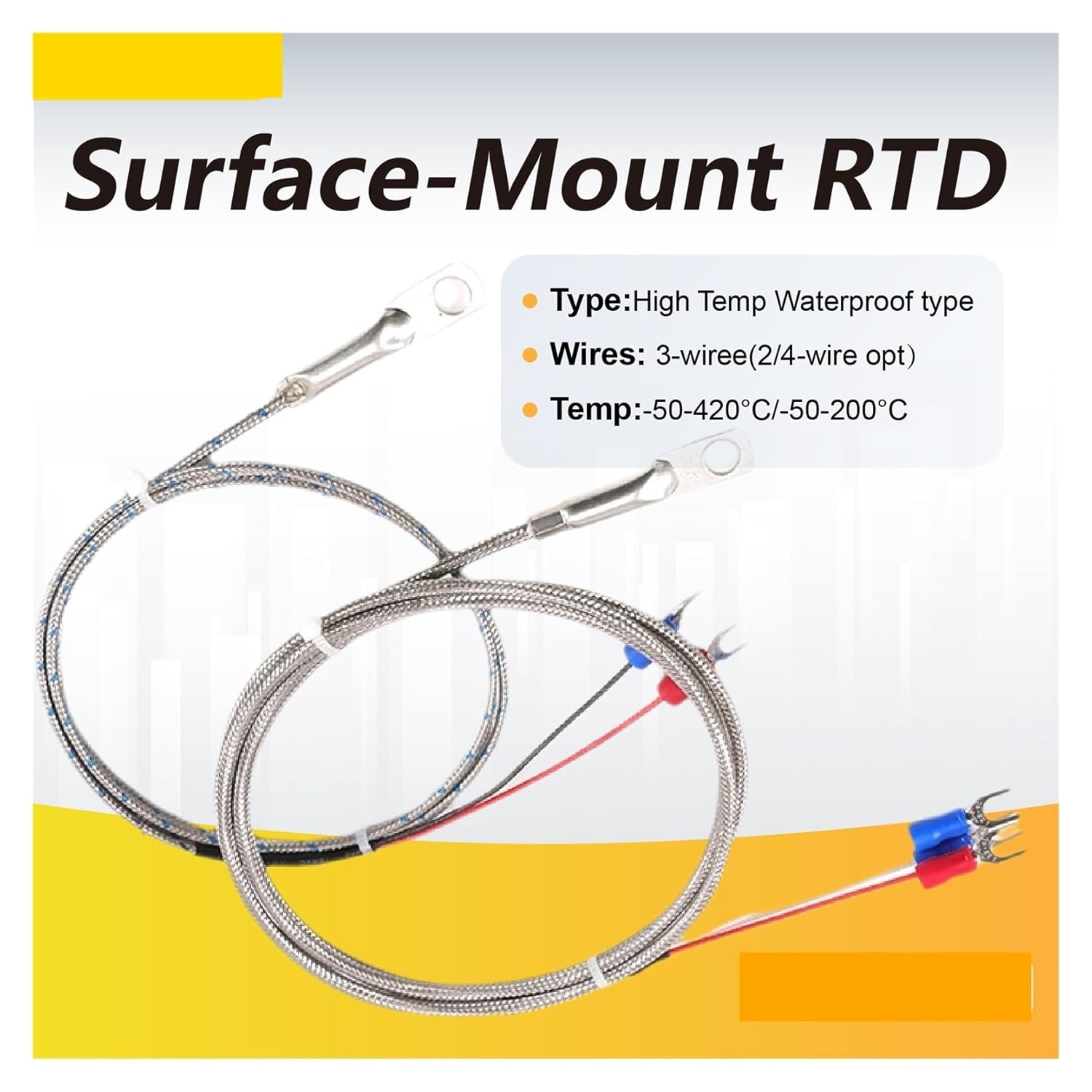

Wzpt-Tp Surface-Mount Rtd Sensor Pt100 Surface Temperature Probe Pad Style Screw Mount for –50 to 420°c Range

1. NOTEDesigned for precise temperature measurement in industrial applications, offering various customization options to meet diverse requirements. Supports high-temperature models (-50-420) and waterproof models (-50-200).Customizable options include inner diameter (default 6, available in 3-16), cable types (silver-plated wire/red silicone wire), lead length, and connection terminals (U-type terminals, aviation plugs, etc.).The temperature sensor must match the input type of the temperature controller. The default package includes only the sensor probe; temperature controllers must be purchased separately.2. PARAMETERSParameterDetailsProduct NamePT100 Pasted Platinum Resistance ThermometerModelCustomizableLead Wire MaterialThree-core high-temperature shielded wireTemperature RangeHigh-temperature: -50 to +420°C (short-term heat-resistant, not waterproof)Waterproof: -50 to +200°C (stable in wet conditions)Inner Hole DiameterDefault: 6mm; available options: 3, 4, 5, 6, 8, 10, 12, 14, 16Paste MaterialPure copper, 1.2mm thick, faster and more sensitive temperature responseBack SurfaceSmooth surface ensures close with measured objects for better accuracyLead Wire Length0.5m/1m/1.5m/2m, customizableTerminal TypeU-type terminal (Default); customizable to pins, aviation plugs, etc.GroundingNon-grounded type, also known as insulated or isolatedCable OptionsPTFE-coated silver-plated wire (370.15mm), Red silicone wire (370.15mm)3. APPLICATIONSuitable for industrial and laboratory use.Accurate and stable measurement for machinery and equipment.Ideal for measuring surface temperature in a range of -50 to +420°C.4. FEATURESHigh-precision PT100 sensor for stable and accurate temperature readings.Non-grounded design reduces external interference.Smooth copper surface ensures close for precise measurement.Durable, high-temperature-resistant construction with customizable options.5. FAQQ: Can I customize the hole diameter or wire length?A: Yes, hole diameters from 3 to 16 and wire lengths are fully customizable.Q: What is included in the default package?A: The default package includes the sensor probe only. Temperature controllers must be purchased separately.Q: Can I use this sensor with other types of temperature instruments?A: Ensure the sensor matches your instrument's input type for accurate readings.Origin : Mainland ChinaProduct Name : PT100 Pasted Platinum Resistance ThermometerLead Wire Material : Three-core high-temperature shielded wireTemperature Range : High-temperature: -50 to +420°C (short-term heat-resistant, not waterproof) Waterproof: -50 to +200°CPaste Material : Pure copper, 1.2mm thick, faster and more sensitive temperature responseBack Surface : Smooth surface ensures close with measured objects for better accuracyLead Wire Length : 0.5m/1m/1.5m/2m, customizable
