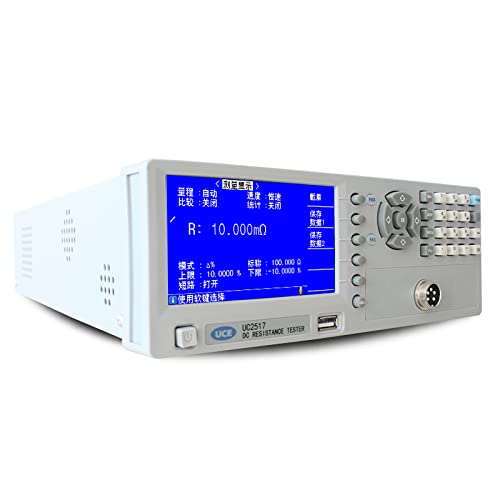

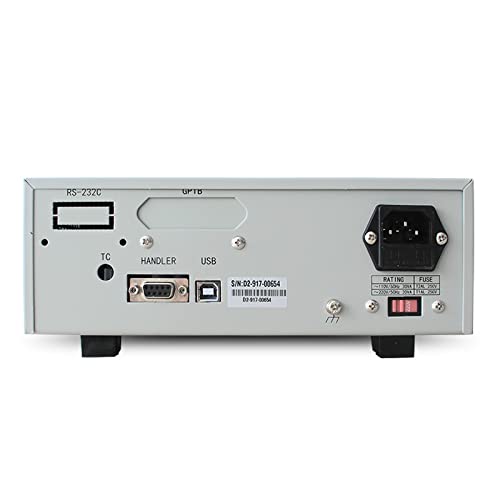

UCE UC2517 DC Resistance Tester for Milliohm Micro Ohms 1μΩ~2MΩ

Brief Introduction UC2517 series can be used to test coil, inductor, transformer, voice coil, relay contact resistance, connector resistance, fuse, cable resistance, PCB resistance, welding resistance, conductive film, metal and so on. UC2517 series is a kind of low resistance tester with high speed, high precision and high performance, which can meet the requirements of production line quality assurance, purchase inspection and laboratory measurement, it can be also used for automatic equipment test. Performance Characteristics 4.3 inch TFT LCD display, with 480×272 RGB resolution It is more convenient for U disk to save the test results directly Maximum resistance accuracy is 0.05% Built-in comparator; HI, LO, IN can be sorted More than 100 groups of internal setting files for storage or call, U disk can expand more than 500 groups of test files to save or call The software version of the instrument can be upgraded and updated via USB HOST U disk can support file systems with format FAT16, FAT32 Standard HANDLER, USB HOST, USBCDC, and USBTMC; Optional RS232C, GPIB interface
