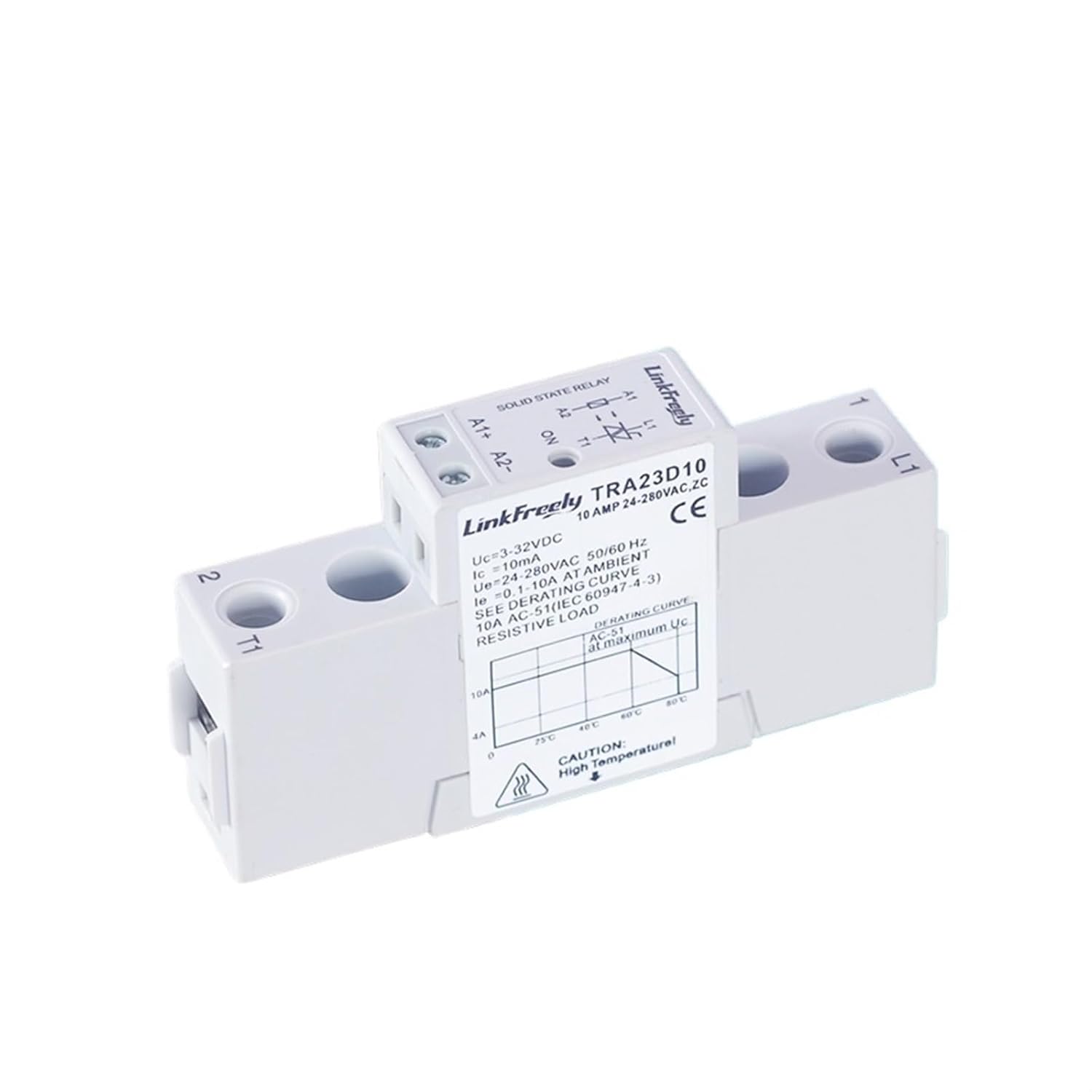

Mini Solid State Relay Board Module SSR Control AC 5V 12V 24VDC Input 220V 250V AC Output Electric Relay Switch Din(10A)

RelaysProduct ParametersGeneral dataModel TRA23D10TRA23D10KTRA23D25TRA23D40TRA23D60TRA23D80Output current10A10A25A40A60A80AOutput voltage24-280VACInput current 12mA@12VDCInput voltage3-32VDCOff voltage not above 1VDC FrequencyZero switching,not above 25Hz Non-repetitive peak voltage 650VpBuilt-in transient diode275VOutput dataMin.operation current: 150mAMax.transient surge current,t=10ms: 230ArmsMax.Off leakage current: 3mAON voltage drop: 1.6VrmsOperation temperature: -20 to 70Storage temperature: - 40 to 100Frequency: 45Hz-65HzProtection grade: IP20Indicator: LED indicator at input sideInsulation: input/output, 2500Vrms; input/shell,4000VrmsScrews: control side- M2.5, 0.5Nm; load side - M4, 1.5-2.0Nm; ,mount screw-M4x22, 2.0-2.4NmNet weight: 65gSpace Saving.17.8mm product width giving a 60% space saving per SSR compared to the 45mm solutions..17.8mm in width equals to 1P circuit breaker,47.5mm mounting hole distance is the same as ordinary SSR.Time SavingThe output can be connected by plug-in bridge connector.Efficiency increases by 50%.High Reliability.Inner components comply with UL,VDE, and CSA standards,the product itself complies with ,together channelling our products to international stardards..Isolation voltage>2500VAC.SMD mount technology.V0 grade flame retardant plastic housingA Variety of Heat Sinks AvailableInstallation.Box clamp variants provide robust for easy and fast connection of power cables up to 25mm^2/AWG3 for control input ,up to 2x1.0...6mm^2 for load connection.
