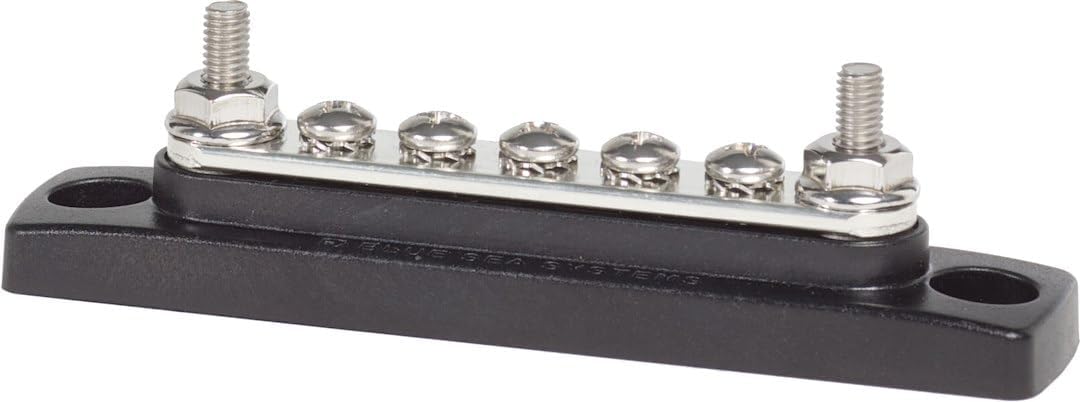

Blue Sea Systems 2105 250 Amp MaxiBus BusBar with 12 screws
Product details
| Management number | 209204939 | Release Date | 2026/03/29 | List Price | $21.78 | Model Number | 209204939 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
250A MaxiBus BusBar with 12 screws (part number 2105). Max voltage: 300V AC/ 48V DC, Continuous Rating: 250A AC/DC. Terminal Screws: 12 x #10-24, Terminal Studs: 2 x 5/16"-18. UL 94-V0 rated base material resists high heat, tin plated pure electrical copper for maximum conductivity and corrision resistance. 2 mounting holes accept #10 (M5) screws.
- 250A MaxiBus BusBar with 12 screws (part number 2105)
- Max voltage: 300V AC/ 48V DC, Continuous Rating: 250A AC/DC

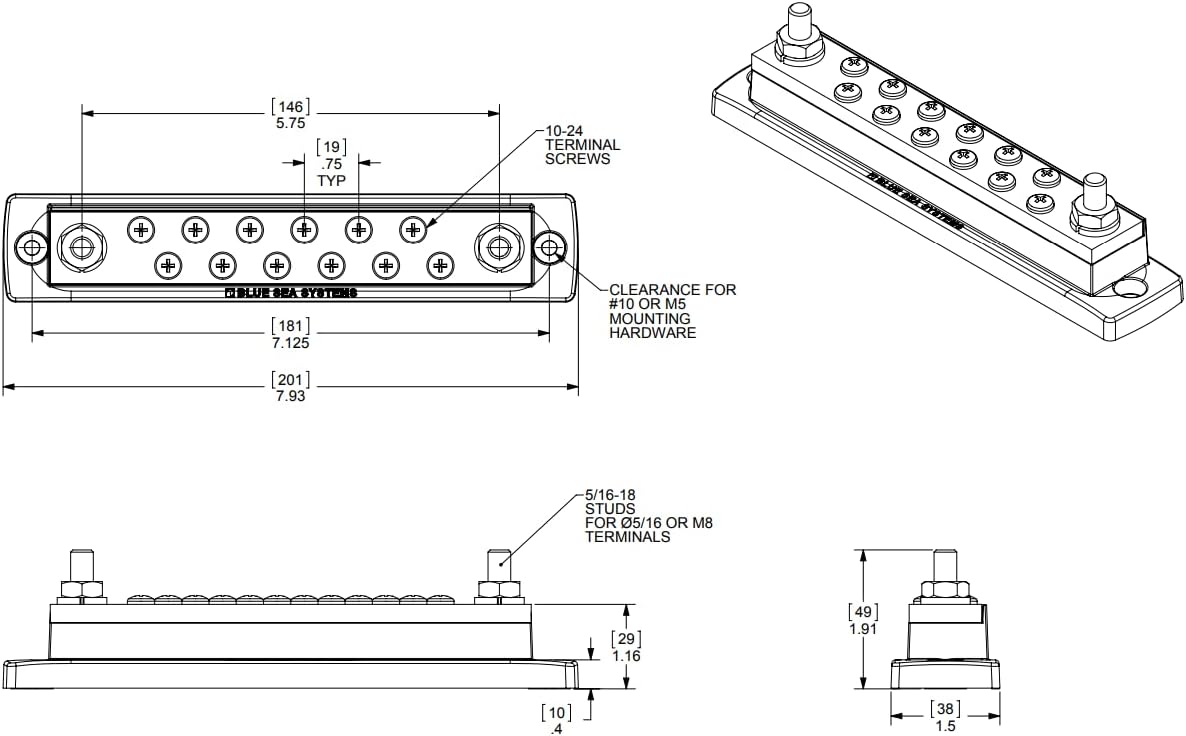

- Terminal Screws: 12 x #10-24, Terminal Studs: 2 x 5/16"-18
- UL 94-V0 rated base material resists high heat, tin plated pure electrical copper for maximum conductivity and corrision resistance
- 2 mounting holes accept #10 (M5) screws
| UPC | 632085021054 |
|---|---|
| Color | Black |
| Model | 2105 |
| Voltage | 300 Volts |
| Brand Name | Blue Sea Systems |
| Unit Count | 1.0 Count |
| Item Weight | 0.8 Pounds |
| Part Number | 2105 |
| Manufacturer | Blue Sea Systems |
| Material Type | Tin-Plated Copper CDA 110 / UNS 11000 |
| Mounting Type | Wall Mount |
| Connector Type | Screw |
| Current Rating | 250 Amps |
| Item Type Name | boating-electrical-equipment |
| Number Of Poles | 2 |
| Specification Met | UL |
| Number Of Contacts | 14 |
| Included Components | BusBar |
| Number of Positions | 14 |
| Warranty Description | Lifetime |
| Global Trade Identification Number | 00632085021054 |
